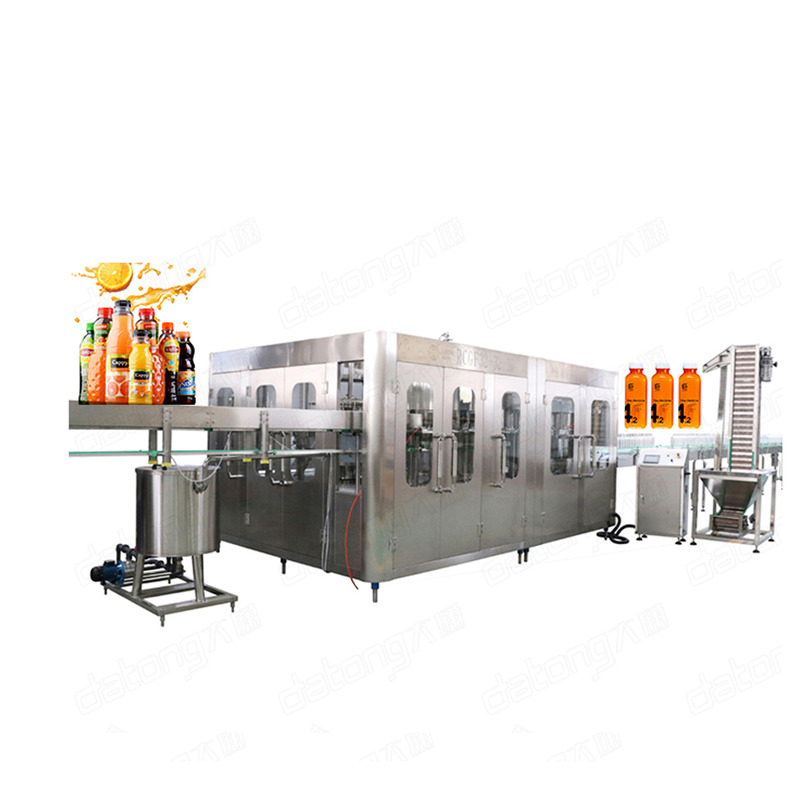

Food China Factory Wholesale Price Automatic Fruit Juice Production Line

1.0 Sets
MOQ
Food China Factory Wholesale Price Automatic Fruit Juice Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Filling Machine
Applicable Industries: Food & Beverage Factory
Showroom Location: Egypt, United States, India
Condition: New
Application: Food, Beverage
Packaging Type: Bottles
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/380V
Dimension(L*W*H): 2200X2100X2200MM
Weight: 3500 KG
Warranty: 2 Years, 1-2 Years
Key Selling Points: Automatic
Machinery Capacity: 2000-30000BPH
Filling Material: Water
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Gear, Bearing
Product Name: Juice Filling Packing Machine
Function: Bottle Washing Filling Capping
Filling Material: Flowing Liquid
Usage: Beverage Packaging
Bottle Type: PET Plastic Bottle
Processing Types: Automatic Cup Filling Sealing Machine
Material: SUS304/316
Capacity: 2000-30000bph
Keywords: Filling Machine Completed
After Warranty Service: Video Technical Support, No Service, Online Support, Field Maintenance And Repair Service
Local Service Location: United States, Viet Nam, Saudi Arabia
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: We use wooden packing to protect machines are not damaged during the transit.
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description
1.Introduction of Juice and Tea Beverage
Juices and teas are one of the fastest growing beverage segments worldwide, with healthier lifestyles, urbanisation and improved retail infrastructure all driving this development.
2. Introduction of Juice Filling Machine
>>It adopts technology of air conveyor direct connect with bottle infeed starwheel instead of screw and conveyor. It is easier and more simple to change over bottle size.
>>It adopts high precision, high speed and quantitative filling valve, and the liquid level is accurate without liquid loss to ensure excellent filling quality.
>>The capping head adopts constant torque device to ensure the sealing quality.
>>The sorting system is efficient, with perfect cap feeding and protection device.
>>It is simple and convenient to change bottle type. It only needs to replace the bottle star wheel can be realized without adjusting the height of equipment.
>>The filling system adopts neck handling technology to avoid the secondary pollution of the bottle mouth.
>>Control system has the functions of automatic control of the water level, lack of cap detection, self stop of washing bottle and output counting and others.
>>The bottle washing system uses the efficient cleaning spray nozzle produced by American spray company technology, which can be cleaned in every place of the bottle.
The all parts of RELIABLE juice filling machine
No
Product Name
Remark
1
Air conveyor with one fan
2M For Free
2
3 in 1 main machine
Washing Filling Capping
3
Recirculation tank
SUS 304
4
Flat conveyor with one motor
2M For Free
5
Cap loader
Full Automatic (High configuration)
6
Light checker
Free

3. Process of Juice Filling Machine

The fan blows the bottle through the air duct to the card bottle plate, and the bottle is brought to the bottle washer by the card bottle plate.

Air conveyor

>> Deal empty bottle conveying equipment.

>> Driven by wind, high conveying speed and low noise.

>> All food grade SUS304/316 design.

>> Ultra-high molecular polyethylene materials with low frictional resistance and high abrasion resistance.

washing machine

>>It is mainly composed of a bottle head, an upper disc and a guide rail.

>>The bottle head rotates with the upper disc, and the bottle neck clamp is used to clamp the filling bottleneck, and the rail is flipped by one hundred and eighty degrees, rinsed and dripped, then flip 180°.

filling machine

>>It mainly consists of water tank, filling valve, guide rail and card bottle lifting device.
>>The No. 2 card bottle plate is fed into the filling machine, the bottle bottle plate is filled to hold the bottle neck, rotates with the water tank, etc., and the filling valve is opened by sliding on the guide bar according to the guide rail, and the filling valve is lowered after the filling is completed.

>>Filling valve, filling valve closes by itself. The bottle is sent out of the filling machine with the No. 3 card bottle.

capping machine

>>The capping mechanism is composed of three parts: a capper, a capping machine and a capper.

>>The bottle is fed by the No. 3 card bottle plate, the card cover is completed, and the cap plate is sent out by the No. 4 card bottle plate.

Flat conveyor (Let filled bottles out.)

>> Designed by module, component can be interchanged easily, have flexibility to combine the bottle type according to the different capacity.

>> Both sides of the fence can be adjusted to make sure the bottle does not fall during delivery.

>> Customized layout according to customer's factory.

Technical parameters
Related Products

water purification machines

Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.

bottle blow molding machine

Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.

carbonated drink filling machine

It is suitable for packing carbonated soft drink ,beverage containing gas. Its performance is as following all parts,for instance, filling valve, which directly contact medium are made of stainless steel or harmless material.
Certifications
China Zhangjiagang Datong machinery Co.,ltd.focused on water & beverage filling machine since 2002. We have rich experience and mature manufacturing.We have CE and ISO and TUV certificate etc. to prove our strength.

DATONG Sales Service

Before Sales
1.Answer your any question on us within 24 hours.
2.Supply all information you required.
3.Machines video for reference
4.Welcome to visit factory

On Sales
1.Update production progress each week
2.Sending machines pictures on production
3.Machines testing running over 8 hours, and sending testing videos

After Sales
1.engineer arranged to install machines
2.Spare Parts provided
3.After sales hotline: 0086-512-58662088
Company Profile

Why choose DATONG?

1.Experience
DATONG Since 2002. We are professional in water&beverage solutions over 16 years.Modern factory of 6000 square meters.over 40 countries' customers are using DATONG machines.

2.Quality control
DATONG machines all parts adopts CNC (computer numerical control machine tools) for processing.Precision was improved greatly.

3. Reasonable Price
DATONG machines are highest cost performance. Our machines and good service worth your cost.

4. Warranty
DATONG provide 24 months long warranty, free parts and effective service in a timely manner. After the warranty, lifelong provide widely favorable technical support and after-sales service.

5. Turn-Key Project
DATONG's Turn-key Project including pre-sale and after-sale service, can provide the whole production line, factory design, design bottle, provide a layout diagram, provide auxiliary materials supply agent information, machine installation and debugging, staff training and so on.

6. After-sale service
DATONG will send engineers to customers factory. Offer installation, debug and technology training to customers.After sales hotline: 0086-512-58662088 .
Packing & Delivery
FAQ

1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhaxi economic development zone,Leyu town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !

4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
