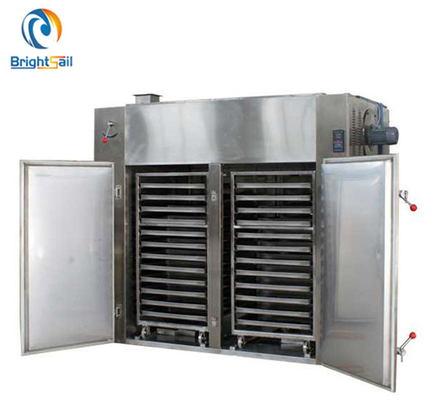

Brightsail fruit dryer machine food processor hot air circulation drying machine
BSO fruit drying machine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy, chemical, foodstuff industry etc.
BSO apple chips drying machine applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditionaloven to 35-45% of the present one. Our products can be customized Brightsail fruit dryer machine food processor hot air circulation drying machine
Brightsail fruit dryer machine food processor hot air circulation drying machine
|
Model
|
BSO-O
|
BS0-I
|
BSO-II
|
BSO-III
|
BSO-IV
|
|
capacity (kg/batch)
|
30
|
120
|
240
|
360
|
480
|
|
Blower power (KW)
|
0.45
|
0.45
|
0.9
|
1.35
|
1.8
|
|
Steam expend (kg/h)
|
6
|
20
|
45
|
70
|
90
|
|
heat dispelling area(m3)
|
5
|
20
|
40
|
80
|
100
|
|
wind (m3/h)
|
3450
|
3450
|
6900
|
10300
|
13800
|
|
diff.in up&down temp(℃)
|
±2
|
±2
|
±2
|
±2
|
±2
|
|
tray (piece)
|
24
|
48
|
96
|
144
|
192
|
|
Overall size(L*W*H)
|
1370×1200×2200
|
2300×1200×2200
|
2300×2210×2200
|
3300×2210×2200
|
4460*2210*2200
|
|
Weight (kg)
|
800
|
1500
|
1800
|
2200
|
2800
|
Great part of hot wind is circulated in the oven with high thermal efficiency, less energy consumption.The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly. The fruit drying machine runs in stable condition, low noise, self-control temperature, easy installing and maintaining, and wide application.
Detailed images of BSO fruit drying machine:
1) The inner wall of dryer is fully welded by stainless steel, and outer wall also adopts stainless steel 304.
2) The tray is made of stainless steel 304, which is good for drying food.
Main features of BSO fruit drying machine:
1) The heating sources are optional, you can use steam or electricity.
2) Hot air circulation drying system, which can dry food faster.
3) Temperature control which can set different hot air temperature according to different food.
Application of BSO fruit drying machine:
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as fruit drying machine,betel nut drying machine, chemical powder mixer machine, spice powder making machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry.,and we have successfully exported machine to over 30 countries,For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries..We wish to grow up and develop together with all new and old customers.
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
*Usually small machine(BSO fruit drying machine) will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big(BSO fruit drying machine), we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
