Home /Products/Fruit Washing Machine/Automatic Food Snus Powder Packing Machine Coffee Milk Detergentwashing Spices Tea Packing Machine Powder

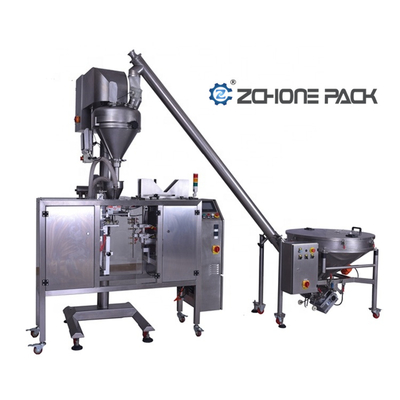

Automatic Food Snus Powder Packing Machine Coffee Milk Detergentwashing Spices Tea Packing Machine Powder

1.0 Sets
MOQ
Automatic Food Snus Powder Packing Machine Coffee Milk Detergentwashing Spices Tea Packing Machine Powder
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Multi-Function Packaging Machine
Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Showroom Location: None
Condition: New
Function: FILLING, Labeling, Sealing
Application: Food, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type: Stand-up Pouch, Bags, Pouch
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 220V,50/60HZ,1KW
Warranty: 1 Year
Key Selling Points: Automatic
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Standard export wooden case packaging
Supply Ability: 1800 Set/Sets per Year
Product Description
Product process
Features
1.The machine stops running when the safety key interlock switch is pulled out
2.No bag prompting function
3.Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag
4.Positioning (anti-dropping) function of hopper
5.Warning function of cartridge heater fault
6.Warning function of cylinder fault
7.Warning function which air pressure is not up to standard
Specification
Item
200
300
430
Bag Material
Multilayer Composite Premade Bag （e.g.: PET/PE）
Bag size
100mm≤L≤200mm
100mm≤L≤300mm
100mm≤L≤430mm
70mm≤W≤150mm
80mm≤W≤300mm
80mm≤W≤300mm
Bag Type
3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type
N/A
Gusset Bag, Zipper Bag, Flat Bottom Pouch
（Need additional purchase of functional device）
Speed
0~26bags/min
0~15bags/min
0~15bags/min
Sealing Type
Plain weave
Straight grain, pitch is 1mm (Optional reticulate)
10g~3kg
Sealing Width
8mm
10mm（5--20mm can be customized）
Voltage
220V, Single-phase, 50/60HZ, 1KW
220V, Single-phase, 50/60HZ, 1.2KW
300mm
Air Pressure
0.65Mpa
Air Consumption
0.2m³/min
0.3m³/min
Standard machine, no additional function
Body Dimension
1080*535*1010mm
1770*600*1230mm
1770*600*1360mm
Packing Dimension
1240*670*1320mm
1860*710*1550mm
1860*710*1650mm
Export non-fumigation wooden case
Optional Equipment

Auger filler

Applicable to all kinds of powder and mixed powder-like material weighing filling, such as: fertilizers, additives, flour, milk powder, coffee powder, washing powder and so on.

Screw conveyor

spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility

Rotary table

The conveyor is applicable for transferring bag from take off conveyor. 304SS materials , diameter 1200mm, we can make this machine according to your requirement.

Finish product conveyor

The machine can send the packaged finished pouch to the inspection device or to final packaging platform.
Packing Solution

The Filling System is Just for Your Reference.We Will Offer You the Best Solution According to Your Product Mobility, Viscosity,Density, Volume, Dimensions, Etc.


Powder Packing Solution —— Servo Screw Auger Filler Is Specialized for Power Filling Such as Nutrients Power, Seasoning Powder, Flour, Medicinal Powder, Etc.

Liquid Packing Solution —— Piston Pump Filller Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.

Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta,
Dried Fruit, Vegetable, Etc.

Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.
