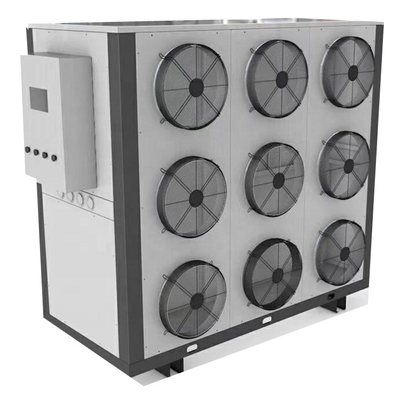

Spice Curing Electric Food Energy Saving Dehydrator Dryer Fruit Drying Machine Hello River Brand Tamarind Vegetable Drying Oven

1.0 Sets
MOQ
Spice Curing Electric Food Energy Saving Dehydrator Dryer Fruit Drying Machine Hello River Brand Tamarind Vegetable Drying Oven
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Heat Pump Dryer(Energy Saving)
Application: Spice Processing
Condition: New
Voltage: 380v
Power: 2.8-11.2KW
Dimension(L*W*H): Different Size(S M L XL)
Key Selling Points: Low Cost,Eesy To Operate,Wonderful Drying Effect
Warranty: 1 Year
Weight (KG): 350
Applicable Industries: Food & Beverage Factory, Farms, Spice Processing Plant
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, PLC
Product Name: Tamarind Drying Machine
Certification: CE, CE
Temperature Range: 0-75
Usage: PLC Intelligent Control Of Temperaure
Function: Heated Air Circulation+Dehydration
Suitable For Drying: Ginger,Chili,Black Pepper,vegetable,Agriculture
Working Life: 10 Years
Weight: 300-1000kg
After-sales Service Provided: Online Support, Video Technical Support, Field Installation, Commissioning And Training
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Basic Infomation
Certification: CE, CE
Payment & Shipping Terms
Packaging Details: plywooden case
Supply Ability: 1000 Set/Sets per Month
Product Description
Hello River Brand Energy Saving Tamarind Drying Machine Fruit Dryer Food Dehydrator Vegetable Drying Electric Oven
Products Description
HELLORIVER Heat Pump Dryer With Widely Application
1.Drying Marine Fish：The heat pump dryer can generate both Hot air or Cool Air to dry different fish.In some cases, it need stimulate the cool and dry weather to dry marine fish with lots of fat. It can dry Sea Cucumber,Abalone,Cat Fish, Cod Fish, Salmon, Squid Fish, Cuttle Fish, Fish Maws, Perch fish, Conch Slice, African Crucian, Anchovy Fish, Smoked Fish and Shrimp.
2.Drying Cured Meat：The heat pump dryer can dry all kinds of cured meat like Sausage, Ham, Dried Pork, Beef Jerky,Bacon,Salami,Dried Chicken, Pet food and any other kinds of Preserve Meat.
3.Drying Fruit ：The heat pump dryer is prefect drying machine for fruit such as Mango Slice, Date, Plum, Lemon, Raisin, Longan, Litchi,Blue Berry, Mulberry, Apple Slice, Persimmon, Kiwi Slice, Papaya, Pitaya fruit and etc.
4.Drying Mushroom ：The mushroom can be extend its sales period and added its sales value by drying into dried ones using heat pump dryer. The heat pump drying machine can dry Shitake,Enokitake,Shimeji, Wood Ear, Fungus, Straw Mushroom and Mushroom of Tea.
5.Drying Nuts：The heat pump dryer almost can dry all kinds of nuts in the world like Walnut, Almond, Hazelnut, Cashew,Moringa Seed,Camellia Oil Seed,Peanut, Pistachio, Apricots, Pine Nut, Macadamia, Chestnut and etc.
6.Drying Herb and Agriculture Product：The heat pump dryer is ideal drying solution basic on its drying cost advantage compared with eletric heater. It can dry herb products with very good drying cost including Moringa Leaf, Vegetable, Ginseng, Ginger, Goji Berry, Yam, Rose, Black Tea, White Tea Product, Puer Tea, Tobacco,Black Pepper, Red Chilli, Cassava, Starch, Pitaya flower and most of kinds of Herb.
7.Drying Food: Noodle, Rice Noodle,Pet Food, Gelatin, Bone and Bone Residue.
8. The drying application in Industrial Field:The heat pump dryer can also dry many industrial material like Inscene Stick, Mosquito Incense,Wood,Paper Tube,Paint Drying,Water-based Paint Drying.

Why choose HELLORIVER Heat Pump Dryer?

Traditional drying equipment may have a large energy expenditure. HELLORIVER Heat Pump Dryer uses reverse Carnot principle, uses free air to absorb the heat around, and transfers the heat to the material to be dried. The heat pump dryer is controlled by touch screen with adjustable temperature and low power consumption and its heating efficiency is higher than that of similar equipment. This dryer have many advantages such as energy saving, environmental protection, intelligent 24-hour operation, wide drying range and good effect.Drying materials are clean, and their appearance and taste can be improved for several grades.

Main Features and Projects for Hello River Brand Energy Saving Tamarind Drying Machine Fruit Dryer Food Dehydrator Vegetable Drying Electric Oven


1, Energy saving
Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;
2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.
3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
4, The temperature: 10-75°C, Max 75°C, similar nature drying.
5, The baking plate dimensions and materials can customize as customer request.
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;
7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise

Main components of Heat Pump drying system
High quality Hello River Brand Energy Saving Tamarind Drying Machine Fruit Dryer Food Dehydrator Vegetable Drying Electric Oven
Product Parameter
MODEL
HRD03S
HRD06S
HRD10S
HRD12S
HRD15S
DRYING CHAMBER SIZE
MM
2.2M*3.5M*2.2M
3M*6M*2.2M
3M*7M*2.2M
3M*7M*2.2M
3M*8M*2.2M
POWER INPUT
KW
2.8
5.2
9.3
11.2
14.8
POWER SUPPLY
V/PH/HZ
2200V/3PHRASE/50HZ
380V/3PHRASE/50HZ
380V/3PHRASE/50HZ
380V/3PHRASE/50HZ
380V/3PHRASE/50HZ
RATED CURRENT
A
5.5
10.8
18.5
22.5
29.6
HEATING CAPACITY
KW
10.5
21
35
42
45
COOLING CAPACITY
KW
7.8
18
25
32
35
DEHUMIDIFY
L/H
12
25
42
50
60
MAX.TEMPERATURE
℃
75
75
75
75
75
WORKING CONDITION
℃
0-43
0-43
0-43
0-43
0-43
ELECTRIC SHOCK PROTECION GRADE
GRADE
Class I
Class I
Class I
Class I
Class I
NOISE
dB(A)
≦75db(A)
≦75db(A)
≦75db(A)
≦75db(A)
≦75
POWER CONSUPTION/H
KW
2.8
5.2
9.3
11.2
14.8
ELECTRIC HEATER
KW
6
9
12
12
12
BLOWING TYPE
\
HORIZONTAL BLOWING 360
HORIZONTAL BLOWING 360
HORIZONTAL BLOWING 360
HORIZONTAL BLOWING 360
HORIZONTAL BLOWING 360
DIMENSION OF DRYER
mm
1675*860*1280
1760*1060*1280
2120*1356*1590
2120*1356*1590
2160*1500*1608
WEIGHT
KG
180
285
300
500
550
Buyer Guidelines For Hello River Brand Energy Saving Tamarind Drying Machine Fruit Dryer Food Dehydrator Vegetable Drying Electric Oven
Recommended type matching of drying machine &drying chamber size
MODEL
DRYER QUANTITY
DRYING CHAMBER SIZE(METER)
FAN MODEL
FAN QUANTITY
HRD03S
1
2.2*3.5*2.2M
250W
9
HRD03S
2
3*7*2.2M
250W
12
HRD06S
1
3*6*2.2M
250W
12
HRD06S
2
3*8*2.2M
250W
24
HRD12S
1
3*7*2.2M
550W
9
HRD12S
2
4*11*2.3M
550W
18
HRD15S
1
4.6*6.5*2.3M
750W
9
HRD15S
2
4.6*11*2.3M
750W
18
No MOQ and Customized Design
Drying+Dehumidify+Cooling PLC+Touch Screem Control 10-15Days Delivery Time
Drying process
The high temperature heat pump drying unit mainly consists of four parts: fin type evaporator (external machine), compressor, fin type condenser (internal machine) and expansion valve. By making coolant continuously complete the thermal cycle process of evaporation (absorbing heat from outdoor environment) ,compression,condensation (releasing heat in drying chamber), throttling and re-evaporation. The heat in external low temperature environment can be obtained and transfer to drying room. The refrigerant circulates in the system under the action of compressor. In the compressor, it completes the process of gaseous pressurization and heating (temperature can up to 100 C). It enters the internal machine and releases high-temperature heat to heat the air in the drying room. At the same time, it is cooled and converted into liquid. When it runs to the external machine, the liquid quickly absorbs heat and evaporates into gaseous again. At the same time, the temperature can drop to - 20 C to - 30 C, then the air around the heat absorber will be contiuously transfer the heat to the refrigerant. The working principle of heat pump dryer is to use a small amount of electricity to drive the compressor according to the principle of reverse Carnot cycle. The high-pressure liquid working coolant evaporates into gaseous state in the evaporator after the expansion valve, and absorbs a large amount of heat energy in the air. The gaseous coolant is compressed into high-temperature and high-pressure gas by the compressor, and then goes into the condenser to release heat and heat the air in the drying chamber, so it continuously circulates and heats up. The air in drying room can be heated to 75 Celsius Degree. In such process, one copy of the energy (electricity) is consumed, and three copy of the energy (heat) is absorbed and transferred from the ambient air to the drying room, which saves two-thirds of the energy compared with the electric heating dryer.
