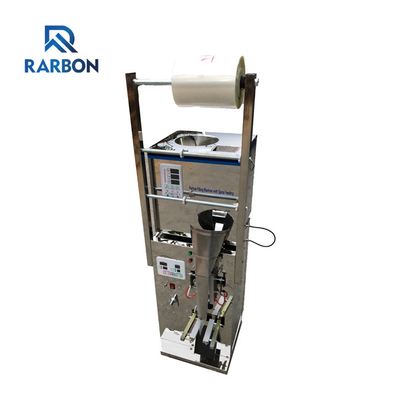

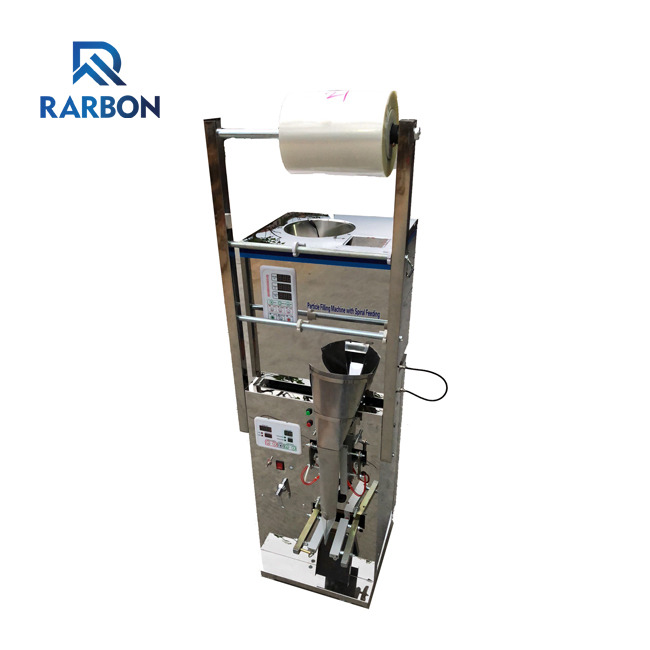

Stainless steel small sachet tamarind/onion/tomato seeds packing machine
I.This machine is suitable for tea, powder, granule , parts etc automatically weight packing.
II.Main Feature
1.Can finish the function of bag making, weight filling, sealing cutting and date printing at one time.
2. With intelligent photoelectric controller system,high precision and high speed working.
3. Controller adopts Chinese or English display, can see the working conditions directly
4. Heating sealer with 4 sides of heating control, each sealing side temperature can be adjusted separately with good heat-balance to ensure the seal in good quality.
5. With intelligent photoelectric controller system.
6. Metering screw is driven by step motor, so that can get higher repeat precision
7. Ribbon printer function is available according to customer needs, which can print date one to three lines like batch number,production date.
8. Filter cotton paper, POF film ,non woven fabric ,compound and aluminum foil film can be used on this machine.
9.Sealing type : back seal, three sides seal ,stick seal.
10.Cursor tracking function can be added which assure precise sealing cutting and bag making
III.All stainless steel structure,microcomputer control panel
IV.This machine consists of bag packing unit and weight filler unit
(1)weight filler unit 1-25g,1-100g
|
Model |
RBDT |
|
Voltage |
220V 50HZ |
|
Power |
100W |
|
Packing weight |
Standard 1—25g (max:100g) |
|
Working speed |
10-30time/min(speed depends on material) |
|
Packing precision |
0—0.03G |
|
Machine size |
36*41*42cm |
|
Weight |
22kg |
(2) bag packing unit parameter
|
Model |
RBDT |
|
Voltage |
220V/50Hz(we can customize) |
|
Max power |
400W |
|
Packing speed |
700-1000bag/hour |
|
Bag length |
40-100mm (can adjust) |
|
Machine size |
59*48*870cm |
|
Weight |
42kg |
|
1.Sealing type: back seal, 3 side seal , stick seal 2.Suitable roll films: POF film, aluminum plastic film, filter cotton paper, nonwoven fabric cloth, aluminum foil film etc 3.Film width decides bag maker size. We usually equip suitable bag maker as film width. Bag making length is adjustable. |
|
3 sides seal back seal stick packing
VI.Professional technician make guidance, lifetime after-sale service
(1) Production process is under strict supervision and adopts China toppest production engineering.
(2) We offer one year guarantee for new machine since it leaves factory(within guarantee), quick-wear part is excluded.if necessary ,we offer free part and send it to you, you just pay the express cost.
(3) When warranty date expires, lifetime maintenance service is still provided.
(4) We always test the machine one by one, make sure it works well before leaves our factory.
(5) Any question, we will supply technical support and headling method or make a video show you when you need help.
VII.Any question or problem , please contact me at any time
