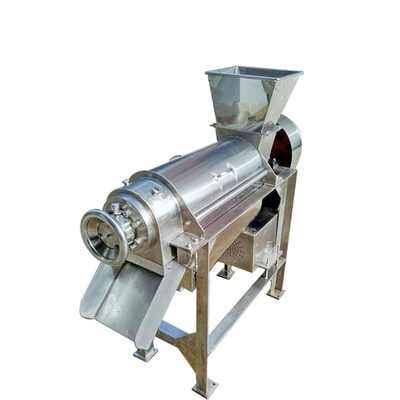

Juice Pulping Extractor Machine Pineapple Pear Puree Mango Orange Squeezer Fruit Vegetable Fruit Juicer Making Machine

2 Sets
MOQ
$1,700.00(2 - 4 Sets) $1,600.00(5 - 9 Sets) $1,500.00(>=10 Sets)
Price
Juice Pulping Extractor Machine Pineapple Pear Puree Mango Orange Squeezer Fruit Vegetable Fruit Juicer Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food & Beverage Shops
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor
Condition: New
Type: Fruit Juice/pulp Extractor Machine
Voltage: Customized
Power: 1.5kw
Weight: 175 KG
Dimension(L*W*H): 700*360*900mm
Year: New
Warranty: 1 Year
Name: Fruit Pulp Juice Making Machine
Application: Fruit Vegetable
Material: 304 Stainless Steel
Usage: Making Fruit Juice Pulp
Capacity: 500kg/h
MOQ: 1 Set
Final Product: Juice/puree
Related Machine: Fruit Puree Making Machine
Model: HL-ZZ0.5
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
After-sales Service Provided: Video Technical Support
Certification: CE Certificate
Basic Infomation
Certification: CE Certificate
Model Number: HL-ZZ0.5
Payment & Shipping Terms
Packaging Details: 1.Standard export wooden box packing FOR High Quality Fruit Puree Making Machine 2.Customize different packaging types according to customer needs. 3.The weight of the machine after packaging exceeds 60kg. Seller's Shipping Method mean the seller default
Product Description
Fruit Juice Pulping Making Machine Juice extractor Machine Mango Orange Pineapple Pear Puree Juicer
Product Description
Use and scope of application:
1.Used for pressing pineapple, apple, pear and other fruits;
2.It is used for pressing mulberries, grapes, oranges, oranges and other berries.
3.It is used for pressing tomatoes, ginger, garlic, celery and other vegetables.
4.Screw push extrusion;
5.Fully automatic juicing and slag removal of berries, kernels and vegetables;
6.The contact part with materials is made of national standard 304 stainless steel.
7.The rack material can be made of national standard 304 stainless steel.
 Equipment structure and working principle:
1.  Structure:
The screw spindle is composed of front support, feed hopper, crushing, screw, filter screen, juicer, rear support and slag
discharge groove. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in
the handwheel bearing seat. The motor drives the screw through a pair of triangular belt pulleys.
2. Working principle:
The main component of the equipment is that the bottom diameter of the screw increases gradually along the direction of the slag
outlet, while the pitch decreases gradually. When the material is propelled by the screw, the screw cavity shrinks, resulting in
the squeezing of the material.
The rotation direction of the spiral spindle is clockwise from the feed hopper to the slag trough. The raw material is added into
the hopper and pressed by the screw. The squeezed juice flows into the bottom Juicer through the filter. The waste is discharged
through the annular gap formed between the screw and the conical part of the pressure regulator. The size of the gap can be
adjusted by the movement of the pressure regulator along the axis. It is used clockwise (when the bearing is rotated from the slag
discharge trough of the equipment to the end of the feeding hopper, the pressure regulating head moves to the left, and the void
is narrowed, and vice versa, the void is enlarged). Change the size of the void, that is, adjust the resistance of slag discharge.
The slag yield can be changed, but if the void is too small, under the strong extrusion, some slag particles will be extruded
through the filter together with the juice. Although the juice yield increases, the quality of the juice decreases relatively. The
void size should be determined by the specific process requirements of users.
Stainless steel spiral fruit and vegetable juicer is suitable for beating and separating fresh fruits and vegetables. Products
such as orange, grape, kiwifruit, mulberry, bayberry, peach (pitted) can be made into jam juice, which can separate the pit, seed
and thin skin of fruit. Vegetable juice can also be made from green vegetables (cut off) tomato, pepper, celery (cut off).
Vegetable tendons can be separated. It is an ideal machine for making jam, fruit juice and vegetable juice. It is an important
equipment for food processing enterprises. 。
fruits and vegetable Stainless Steel Spiral Screw Cold Press Juicer/ extractor juice machine Parameters
Model
HL-ZZ0.5
HL-ZZ1
HL-ZZ1.5
HL-ZZ2.5
Capacity
0.1-0.5t
1t/h
1.5t/h
2.5t/H
Screw diameter (mm)
80mm
125mm
175mm
247MM
Screw juicer speed(r.p.m)
380
380
380
380
Screen pore size(mm)
0.6mm
0.6mm
0.6mm
0.6mm
Power
1.5kw
2.5kw
4kw
380V/11kw
Dimension
700*360*900mm
950*400*1100mm
1300*450*1357mm
2000*700*1850mm
Detailed Images
Related Products
Juicer with crusher
Juicer with broken, Suitable for larger whole fruits
Multifunction fruits and vegetable extractor with crusher Parameters
Model
HL-ZZFS0.5
HL-ZZFS1
HL-ZZFS1.5
HL-ZZFS2.5
Capacity
0.1-0.5t
1t/h
1.5t/h
2.5t/H
Screw diameter (mm)
80mm
125mm
175mm
247MM
Screw juicer speed(r.p.m)
380
380
380
380
Screen pore size(mm)
0.6mm
0.6mm
0.6mm
0.6mm
Screw juicer motor Power
1.5kw
2.5kw
4kw
380V/11kw
Crusher motor Power
0.7KW
1.5KW
1.5KW
1.5KW
Dimension
900*360*1300mm
950*400*1450mm
1600*450*1700mm
2000*700*2100mm
Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Company Information

Zhengzhou hongle machinery & equipment co.ltd

is engaged in the development, design, manufacture and sale of food processing machinery. over the years adopts many new ideas, absorbs a wide range of advanced technologies worldwide as well as excellent processing and testing equipment, and takes a reliable strict quality guarantee system and an important after-sales service system to win customer's trust in the industry.
