Fruit processing plant juicer extractor machine commercial fruit orange juicer machine

1.0 Sets
MOQ
Fruit processing plant juicer extractor machine commercial fruit orange juicer machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops, Fruit And Vegetabls Plant
Showroom Location: Pakistan, Kenya, Sri Lanka, Bangladesh
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Gear, Pump
Model Number: ZZJ-3, ZZJ-5, ZZJ-8, ZZJ-10, Customized
Voltage: 220V/380V/415V
Power: 9kw
Dimension(L*W*H): 2200*2250*2800mm
Weight: 500 KG
Warranty: 1 Year
Application Fields: Fruit Processing Plant, Vegetable Processing Plant, Beverage Factory, Fruit Juice Factory
Machinery Function: Juicing And Extracting
Raw Material: Fruit, Vegetables
Output Product Name: Fruit And Vegetables Juice
Key Selling Points: High Efficiency
After-sales Service Provided: Overseas Service Center Available, Field Installation, Commissioning And Training
Material: SUS304/316L
Product Name: Juicer Extractor Machine Commercial
Control Type: Automatic
Certificate: ISO9001:2008/HACCP/GMP
Effeciency: High
Type: Turnkey Project
Usage: Juicer Extrator
Capacity: 3TPH-10TPH
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Pakistan, Kenya, Sri Lanka, Bangladesh
Certification: CE And ISO
Basic Infomation
Certification: ISO9001:2008/HACCP/GMP, CE and ISO
Model Number: ZZJ-3, ZZJ-5, ZZJ-8, ZZJ-10, customized
Payment & Shipping Terms
Packaging Details: Standard Export Package including Wooden case,PE wrap film,Carbon Steel
Supply Ability: 5 Set/Sets per Month
Product Description
Juicer extractor machine commercial fruit orange juicer machine
Product Description

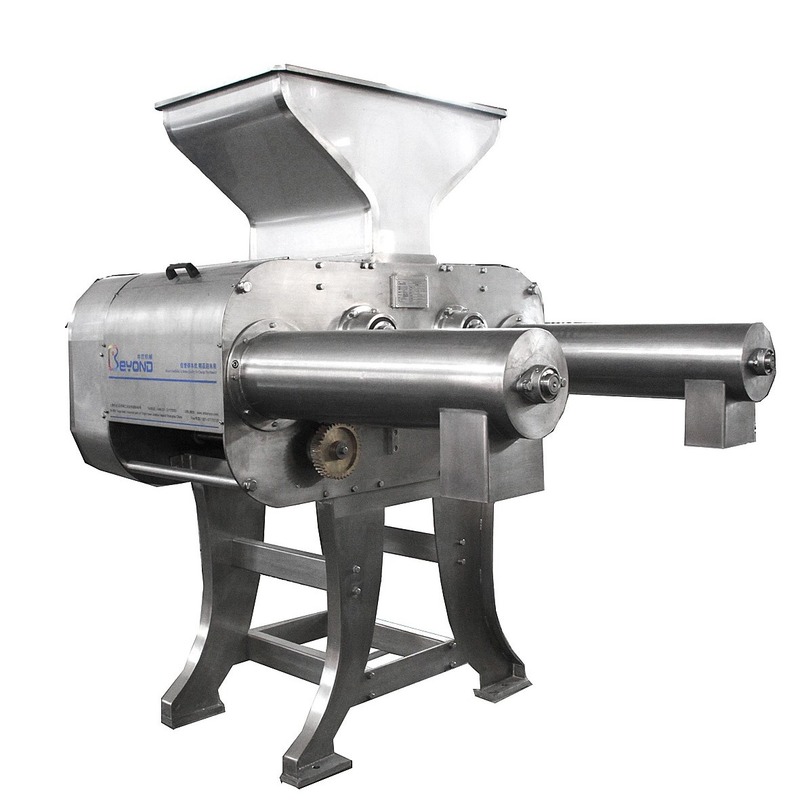

Roller half-cut juice extractor is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.
1
Master machine
2
Auto control Cabinet
3
Extraction of pineapple,apple,pear,berry etc.
4
High jucing rate
5
Energy saving
6
continuous working
Direction for use
It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.This machine is composed of the parts: machine frame, gear box, juice collecting bucket, left rotor drum, blades, 4-opens rotary tables, right rotor drum, bowl-shape conveyor, safety cover, driving motor, etc. The working theory is the motor drives the main shaft through the V-belt pulley, the main shaft will transfer the power to the following structures: bowl-shape conveyor, 4-opens rotary tables, left rotor drum, and right rotor drum.

  • Description of application effect

The machine is suitable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc. Features: Machine capacity: 300-320 pcs/mins; Juice extracting rotor drum: 2 numbers; Extracting heads: 7 pcs/ drum; Motor power: 5.5kw, 960r/min; Machine size: 1700×1670×1600mm(Length×Width×Height); Machine net weight: 2T; This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield. The materials contacting with product is made of good quality stainless steel, comply with food hygienic standard; The whole frame structure, good rigidity, stable working, and small vibration; It is equipped with centralized CIP cleaning device.
Detailed Images
This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.The materials contacting with product is made of good quality stainless steel, comply with food hygienic standard.
Size Information
Size Chart of This Design
Model
Capacity
Motor power:
Mechanical size
Extracting heads
ZZJ-5
5TPH

5.5KW,960r/min
1700*1670*1600mm
7 pcs/ drum
ZZJ-10
10TPH

9KW,960r/min
2200*2250*2800mm
7 pcs/ drum
