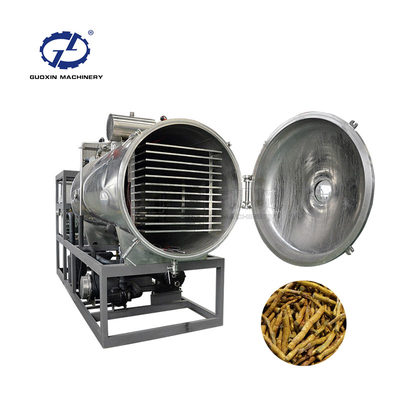

Guoxin Dryer Fruit Drying Equipment Tomato Dehydrator Energy Saving Vegetable Freeze Drying Machine

1.0 Sets
MOQ
$55,000.00(1 - 4 Sets) $53,000.00(5 - 9 Sets) $49,990.00(>=10 Sets)
Price
Guoxin Dryer Fruit Drying Equipment Tomato Dehydrator Energy Saving Vegetable Freeze Drying Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Freeze Drying Equipment
Application: Food Processing
Condition: New
Voltage: Can Be Customized
Power: 60kw
Dimension(L*W*H): 454*135*240cm
Key Selling Points: Energy Saving
Warranty: 1 Year
Weight (KG): 3800
Applicable Industries: Food & Beverage Factory, Food Shop, Printing Shops, Food & Beverage Shops
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, PLC
Evaporation Capacity(kg/h): 40
Material: SUS304
Product Name: Fruit Drying Equipment Tomato Dehydrator Freeze Drying Machine
Keywords: Vacuum Lyophilizer
Feature: Energy Saving, Save Time, Drying Quality Is Good, Etc
Trolley Type: Integral/Split Type
Trolley Material: Galvanized/Stainless Steel
Power Supply: 380V/220V Or Customized
Color: Customized
Key Word: Vegetable Flower Drying Machine
Usage: Drying Wet Raw Material
MOQ: 1
After-sales Service Provided: Online Support, Free Spare Parts
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Guoxin vegetable dryer fruit drying equipment tomato dehydrator freeze drying machine Vacuum lyophilizer packed by wooden box Machine Size: 1180*680*1800 mm Wooden packing size: 1250*770*1940 mm
Supply Ability: 20 Set/Sets per Month Vacuum lyophilizer
Product Description
As a professional vegetable dying dryer machine manufacturer, Guoxin Machinery has provided comprehensive drying solution and complete set of drying equipment to global clients over the last 20 years.
* Our dryers are customizable
Product Description
Vegetable And Fruit Processing Machine Lyophilization Vacuume Freeze Dyer Equipment Application: Food industry: drying vegetables,meet,fish,condiment instant food and specialty,etc. keeping the food’s original fresh look,smell,taste,shape. The freeze-dried products can regain water completely and can be easily longer stored and less-costly transported. Nutrition and health care industry: Vacuum freeze-dried nurture products such as Royal jelly,ginseng,terrapin,rainworm, etc ,keep the final products are more natural original. Pharmaceutical industry: Vacuum freeze-drying can be used in the drying of chinese and western leechdom such as blood serum,blood plasma,bacterin,enzyme,antibiotics,hormone etc. Biomedicine reserch: Vacuum freeze-drying can long-termly store blood, bacteria,artery,bones,skin,cornea,nerve tissue and organs etc which can regain water and rebirth completely.
Working Principle 1. The vacuum freezing drying machine pre-cool the material, make the material to be frozen in the low temperature. 2. The water in the material has been turned into tiny ice particles. 3. Heat the material, the ince particales turns into vapour directly by sublimation. 4. The condensator box collect the vapour, and the vapour turn into water, exhausted out of machine. The water is dryied in form of ice, so it will keep the shape and nutrition of the material. After the drying ,the space of water will not be filled, so the dried material will be spongy and porous, at the same time very crispy. and easy to crush and solve in the water.
Advantage 1. Keep the shape of the material 2. Keep the nutrition, flavor of the material 3. Crispy 4. Spongy and prous 5. Easy to solve in water and crush 6. Low moisture, easy for store
Details show
Contact FD machine
GXZG-1
GXZG-10
Chamber dimension L*W(M)
Φ0.7×0.7
Φ1.2×1.5
Shelf working areas(m²)
1.1
10
Shelf working temp.(℃)
—50～+60
Shelf temp. range (℃)
±1
Condenser temp.(℃)
—65±5
Condensor water collection (Kg)
12
120
Vacuum degree(Pa)
2
3
Cooling water(below 25℃)
flow rate(T/h)
3
15
Deforesting
Waters spray and submergence
Ambient conditions
Temp. 5℃～30℃ Relative humidity〈75%
Total power
16
60
Installation area * height
(m²×m)
2×2.2
20×2.5
